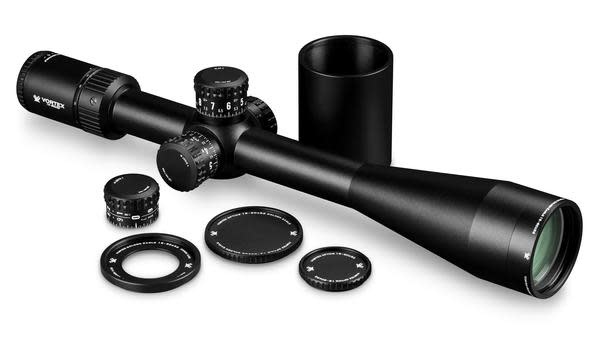

Competitive shooters require a very specific set of features to stay ahead of the competition, and The Golden Eagle hits the mark (pun intended).
The 15-60X magnification, fine reticle, and the positive and repeatable tracking are perfect for fine tuning that record shot. Plus, its relatively light weight, only 29.5oz, allows shooters to adhere to strict competition weight limits.

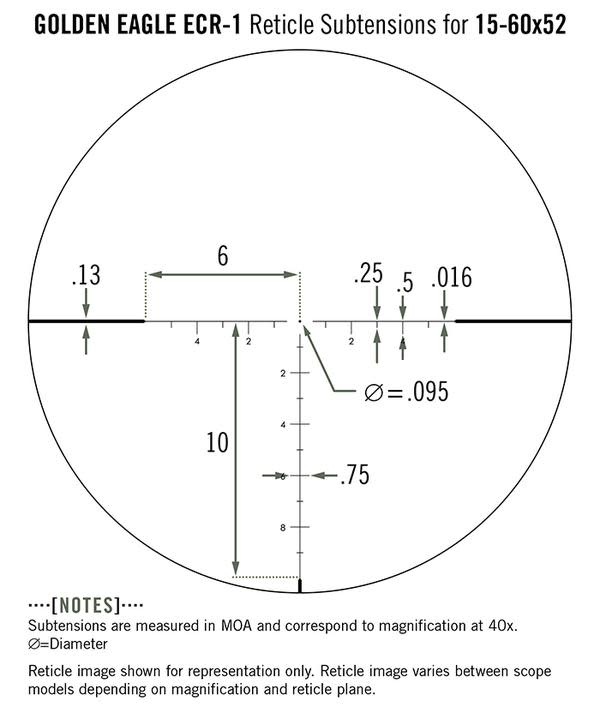

ECR-1 Reticle (MOA)
The ECR-1(Enhanced Crosshair Reticle) ) is a hash marked reticle using moa based subtension lines for hold over, and windage corrections. The floating centre dot subtends 0.095 MOA at 40X.
OPTICAL
APO System Apochromatic Objective Lens System - Uses index matched lenses to correct color across the entire visual spectrum.
Optically Indexed Lenses - Optimizes image sharpness and brightness from edge to edge.
HD Lens Elements Premium HD (High Density) - Extra low dispersion glass delivers the ultimate in resolution and colour fidelity, resulting in high definition images.
XRPlus Fully Multi-Coated - Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.
Plasma Tech - Cutting edge application process provides unparalleled coating durability and performance
Second Focal Plane Reticle - Scale of reticle maintains the same ideally sized appearance through all levels of magnification. Listed reticle subtensions used for estimating range, hold over and wind drift correction are accurate at 40x magnification.
CONSTRUCTION
Tube Size - 30 mm diameter provides maximized internal adjustment and strength while maintaining light weight.
One Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and water resistance. .
Aircraft Grade Aluminuim Constructed from a solid block of aircraft grade aluminium for strength and rigidity.
Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope, to ensure reliable performance in all environments.
Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof - Rugged construction withstands recoil and impact.
ArmorTek - Ultra hard, scratch resistant coating protects exterior lenses from scratches, oil and dirt.
Side Focus - Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.
INTERNAL MECHANISM DESIGN
Extra Fine Resolution Turret - The resolute increment of adjustment of just 0.125 MOA per click allows competitive shooters to make very small adjustments to fine tune their shots.
CONVENIENCE
Fast Focus Eyepiece - Allows quick and easy reticle focusing.
Optional 10 MOA Windage Turret - Included accessory turret allows for dialing a full 10 MOA revolution of windage before the scale repeats.
ASR (Aperture Stop Ring) - Broadens the depth of focus allowing the shooter to more easily observe down range mirage and other wind indicators, while keeping the target in focus.
Aluminium Lens Caps - Premium aluminium screw on eyepiece and objective lens covers included.
SPECIFICATIONS
Magnification 15-60X
Objective Lens Diameter 52 mm
Eye Relief 3.9
Field of View 6.3-1.7 feet/100 yards
Tube Size 30 mm
Turret Style Target
Adjustment Graduation 1/8 MOA
Travel per Rotation 10 MOA
Max Elevation Adjustment 55 MOA
Max Windage Adjustment 45 MOA
Parallax Setting 15 to Infinity
Length 41cm / 16.1 inches
Weight 840g / 29.7 oz
