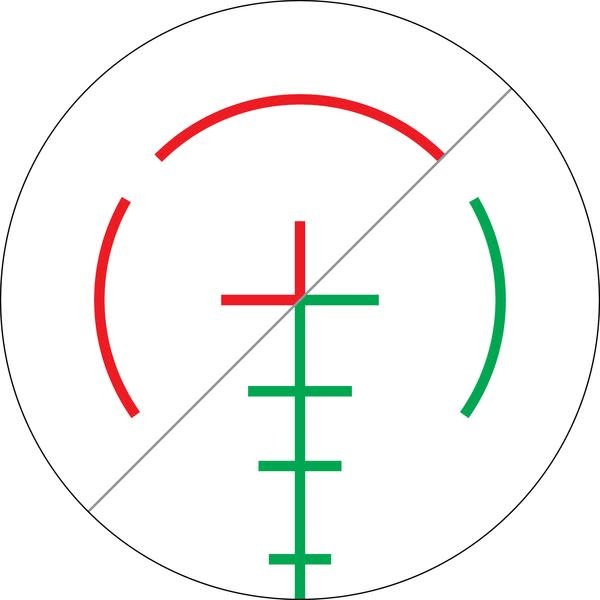

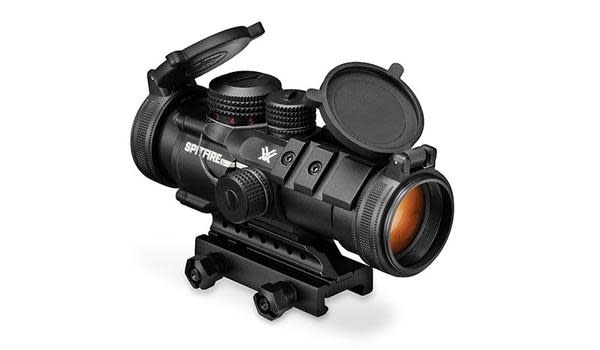

Designed specifically for the AR platform, the 3x Spitfire combines an impressive array of high performance features into a rugged, ultra-compact package. When fast target acquisition in close to medium range shooting applications is a priority, the Spitfire excels. Laced with advanced features, this sophisticated prism-based design allows for a more compact optical system without sacrificing optical quality. The EBR-556B is a hybrid reticle with BDC drop subtensions that match the popular .223 cartridge. The reticle is etched directly on the prism to ensure consistent point-of-aim at all times, with selectable red/green illumination of five intensity levels to match specific conditions.
Optical Features
Fully Multi-Coated Multiple anti-reflective coatings on all air-to-glass surfaces increases light transmission.
Prism-Based Design - Delivers sharp optics and allows for unique reticle designs that are visible with or without illumination.
Construction Features
One Piece Chassis - Compact and lightweight.
Waterproof - O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof - Nitrogen gas purging delivers fogproof, waterproof performance.
Shockproof - Rugged construction withstands recoil and impact.
Hard Anodized Finish - Highly durable low glare matte finish.
Temperature Resistant - Operating Temperature Rated from -22 degrees to +122 degrees Fahrenheit.
Convenience Features
Variable Mount Heights - Comes mounted at a lower 1/3 co-witness height of 40.4 mm from the optic center to base surface. Just remove the mount riser if a lower 30 mm mounted height is desired.
Adjustable Brightness - Provides five levels of brightness intensity with red and green illumination settings.
Red/Green Reticle Option - Allows shooters a choice of dot colour.
Battery Life - Typical battery life is 250 hours at maximum brightness and 3,000 hours at minimum brightness setting.
SPECIFICATIONS
Magnification 3 X
Eye Relief 2.8 inches
Field of View 31.5 feet/100 yards
Adjustment Graduation 1/2 MOA
Max Elevation Adjustment 120 MOA
Max Windage Adjustment 120 MOA
Parallax Setting Parallax Free
Length 13.9cm / 5.5 inches
Weight 345 grams / 12.2 ounces
