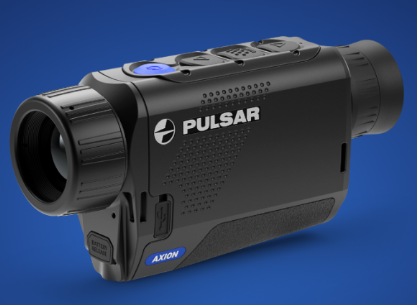

Designed to fit perfectly in one hand or in a standard-size pocket, Axion ensures comfortable grip and handling, as well as easy carrying. The compact design also makes Axion the perfect thermal imaging monocular for scouting and spotting.

Long Detection Range
Powerful objective lens in combination with a 12 µm professional grade thermal imaging sensor provides exceptional detection capabilities. A standard 1,8 m (6 ft) tall object can be detected at a 1200 m distance in complete darkness.

12 µm Thermal Imaging Sensor
New thermal imaging sensor with 12 µm pixel pitch helps to achieve higher optic magnification and observation distance and simultaneously helps to make the unit more compact.

Rugged Magnesium Alloy Housing
Housing made from light weight magnesium alloy ensures high structural rigidity and ruggedness while retaining small weight and ergonomics.

B-Pack Mini Power System
Miniature power elements used in Axion models provide sufficient operation time and can be quickly replaced. B-Pack mini batteries can be quickly charged either with included charger station or in the unit connected to USB.

MORE FEATURES
High Optic Magnification
Axion offers the highest magnification in the class of compact thermal imagers. Considerable optic magnification can be increased by means of digital zoom to provide the best identification of observed objects.
Instant Start-up
Thanks to the new revolutionary electronics unit can be started almost instantly. Quick start-up helps to save energy and thus prolongs time of operation. The unit can be kept in a pocket and then rapidly activated when the right time comes.
LCOS microdisplay
Key models come with LCOS microdisplay
IPX7 Waterproof Rated
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The Axion is designed to run flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
Lightweight
Small weight becomes important when outdoor trip is long and each piece of equipment adds to a total load that has to be carried on the back. Axion weighs around 300 grams not more than a regular rangefinder unit but offers far more significant capabilities.
Picture in Picture Function
Upon activation Picture in Picture function displays second small image with magnification in the top part of the screen. Small image helps to zoom in on a target while retaining the rest of the field of view visible.

SPECIFICATIONS
Sensor 320x240 pix. @ 12 µm
Objective lens F28/1.2
Magnification, 2.5 – 10 x (x4 zoom)
Detection range, 1200 m
Sensor
Type uncooled
Resolution, 320x240 pixels
Pixel pitch, 12 µm
Frame rate, 50 Hz
Optics
Objective lens F28/1.2
Magnification, 2.5 – 10 x
Field of view (HxV), 7.8x5.9 / 13.7x10.3 degrees / m @ 100 m
Display Type LCOS
Resolution, 960x720 pixels
Range Performance
Detection range, 1200 m
Environmental Characteristics
Degree of protection, IPХ7 IP code (IEC60529)
Operating temperature range, -10 – +40 °С
Weight & Size
Dimensions, 143x41x69 mm
Weight, 0.25 kg
Power Supply
Output voltage, 3.0 - 4.2 V
Battery type Li-Ion Battery Pack APS3
Capacity, 3200 mAh
Operating time on battery pack (at t=22°C), 4+h *
External power supply 5V
