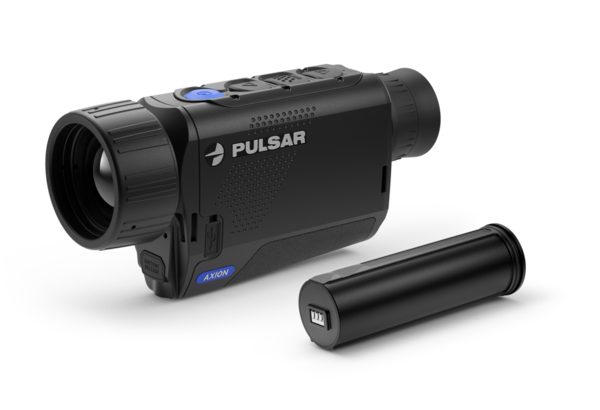

Designed to fit perfectly in one hand or in a standard-size pocket, Axion ensures comfortable grip and handling, as well as easy carrying. The compact design also makes Axion the perfect thermal imaging monocular for scouting and spotting.
Small Pocket-sized Format
Designed to fit perfectly in one hand or a pocket of a standard size, Axion ensures comfortable grip position and easy carrying. Compact size of thermal imager makes it an optimal portable unit for scouting and spotting.
Long Detection Range
Powerful objective lens in combination with a 12 µm professional grade thermal imaging sensor provides exceptional detection capabilities. A standard 1,8 m (6 ft) tall object can be detected at a 1300 m (1420 yds) distance in complete darkness.
12 µm Thermal Imaging Sensor
New thermal imaging sensor with 12 µm pixel pitch helps to achieve higher optic magnification and observation distance and simultaneously helps to make the unit more compact.
Rugged Magnesium Alloy Housing
Housing made from light weight magnesium alloy ensures high structural rigidity and ruggedness while retaining small weight and ergonomics.
Video and Still-Photo Recording
The built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 16 Gb of internal memory provide many hours of recorded video and tons of photos.
Stream Vision App Supported
Built in Wi-Fi module provides connectivity of Axion with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware update and many other.
B-Pack Mini Power System
Miniature power elements used in Axion models provide sufficient operation time and can be quickly replaced. B-Pack mini batteries can be quickly charged either with included charger station or in the unit connected to USB.
High Optic Magnification
Axion offers the highest magnification in the class of compact thermal imagers. Considerable optic magnification can be increased by means of digital zoom to provide the best identification of observed objects.
HD AMOLED Microdisplay
High contrast AMOLED micro display of HD resolution offers crisp image and vivid colours. Display ensures excellent image quality and flawless performance even in freezing temperatures. Key models come with LCOS microdisplay
Colour Palettes
The 8-color palette enhances viewing in varying conditions. While the classic “White Hot” mode is exceptionally versatile, “Hot Black” is often favored for detecting wildlife at night. Red monochrome helps to reduce or prevent bright backlight from exiting the eyepiece. Sepia often improves long-range observation while “Red Hot”, “Rainbow” and “Ultramarine” enhance temperature differences of various object attributes. Violet helps to identify objects faster.
Lightweight
Small weight becomes important when outdoor trip is long and each piece of equipment adds to a total load that has to be carried on the back. Axion weighs around 300 grams not more than a regular rangefinder unit but offers far more significant capabilities.
Instant Start-up
Thanks to the new revolutionary electronics unit can be started almost instantly. Quick start-up helps to save energy and thus prolongs time of operation. The unit can be kept in a pocket and then rapidly activated when the right time comes.
IPX7 Waterproof Rated
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The Axion is designed to run flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
Picture in Picture Function
Upon activation Picture in Picture function displays second small image with magnification in the top part of the screen. Small image helps to zoom in on a target while retaining the rest of the field of view visible.
SPECIFICATIONS
Sensor - 320x240 pix. @ 12 µm
Objective lens - 30/1.2
Magnification, 4.5 – 18 (x4 zoom)
Detection range, 1300m
Sensor Type uncooled
Resolution, 320x240 pixels
Pixel pitch, 12 µm
Frame rate, 50Hz
Field of view (HxV), 7.3x5.5 / 12.8x9.6 degrees / m @ 100 m
Display Type AMOLED
Video Recorder
Video / photo resolution, 1024x768 pixel
Video / photo format .mp4 / .jpg
Built-in memory, 16 Gb
Degree of protection, IP code IPХ7 (IEC60529)
Operating temperature range, -25 – +40 °С
Weight & Size
Dimensions, 143x41x69 mm
Weight, 0.25 kg
Power Supply
Output voltage, 3.0 - 4.2 V
Battery type Li-Ion Battery Pack APS3
Capacity, 3200 mAh
Operating time on battery pack (at t=22°C), 4+ h *
External power supply, 5V
Wi-Fi Frequency, 2.4 GHz
Standard 802,11 b/g
Line-of-sight reception range, 15 m
