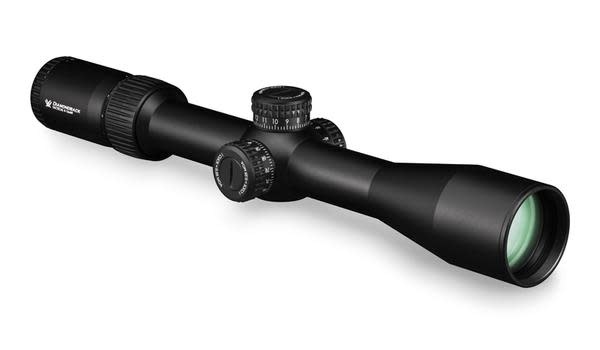

Try not to spit out your coffee as you check the price of the Diamondback Tactical FFP after reading about its impressive performance and features. The first focal plane reticle, a feature ordinarily reserved for 4-figure-priced optics, allows shooters to use the information-packed EBR-2C reticles for ranging, holdovers or windage corrections on any magnification. Housed inside its durable, one-piece aluminum tube is a 4x optical system delivering excellent edge-to-edge clarity and sharp resolution. Exposed elevation and windage turrets are low profile enough to stay out of the way in packing situations, but offer the quickness, ease and precision of dialing accurate shots at distance. A side adjustable parallax gives shooters peace of mind by removing parallax error from the equation from 10 yards to infinity.
FEATURES
OPTICAL FEATURES
XD™ Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
Fully Multi Coated Lenses Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
First Focal Plane Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
CONSTRUCTION FEATURES
Tube Size 30 mm diameter provides maximized internal adjustment and strength.
Nitrogen Gas Purged Gas purged and o-ring sealed for fogproof and waterproof performance in all conditions.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable low-glare matte finish helps camouflage the shooter's position.
Precision-Glide Erector System Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Exposed Tactical Turrets The Diamondback® Tactical scopes feature tactical windage and elevation turrets with Zero Reset making adjustments back to zero easy and quick.
INTERNAL MECHANISM DESIGN FEATURES
Precision-Glide Erector System Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Precision-force Spring System Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
CONVENIENCE FEATURES
Fast Focus Eyepiece Allows quick and easy reticle focusing.
Magnification Rib The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
SPECIFICATIONS
Magnification 4-16 x
Objective Lens Diameter 44 mm
Eye Relief 3.8 inches
Field of View 26.9-6.7 feet/100 yards
Tube Size 30 mm
Turret Style Tall Exposed Tactical
Adjustment Graduation 1/4 MOA
Travel per Rotation 15 MOA
Max Elevation Adjustment 85 MOA
Max Windage Adjustment 85 MOA
Parallax Setting 20 yards to Infinity
Length 35.5cm / 14 inches
Weight 655 grams / 23.1 ounces ounces
